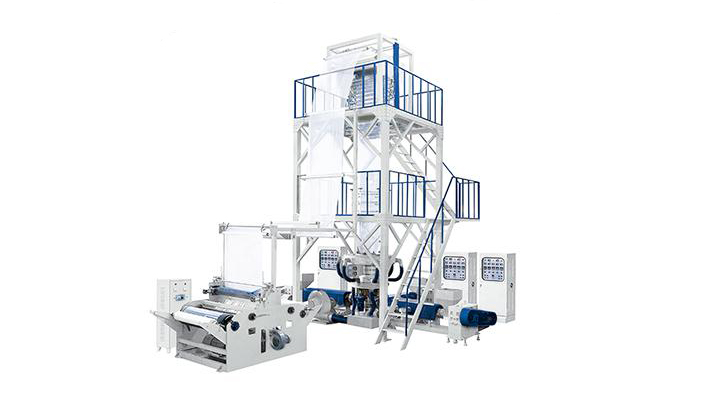

3 Layer Co-extrucsion Film Blowing Machine

3 Layer Co-extrucsion Film Blowing Machine is designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the rounds of preference of analogous lines in foreign and home. The lines can be blown continuous 800/1500mm in fold width, 0.08mm.
In the thickness packaging films, film has good insulation, for instance holding temperature, anti-humid, anti-breeze, anti-rain, anti-rost, insulation oxygen oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink. 3 Layer Co-extrucsion Film Blowing Machine is your best choice.

Fill out my online form.
Model 3SJ-1000
Screw Diameter Φ55mm
Screw Ratio L/D30:1
Screw Speed 15-120r/min
Power Of Main Motor 15kwX2 18.5kwX1
Max Extrusion Output 110Kg/h
Range Of Die Φ150Φ200
Single-sided Thickness Of Film 0.01-0.10mm
Max.Folding Width of Film 1000mm
Electric Total Capacity 76Kw
Weight Of Machine 6200kg
Overall Dimensions 7000 x 4800 x 6800 mm
Model 3SJ-1200
Screw Diameter Φ60mm
Screw Ratio L/D30:1
Screw Speed 15-120r/min
Power Of Main Motor 18.5kwX2  22kwX1
Max Extrusion Output 140Kg/h
Range Of Die Φ200Φ250
Single-sided Thickness Of Film 0.01-0.10mm
Max.Folding Width of Film 1200mm
Electric Total Capacity 88Kw
Weight Of Machine 6200kg
Overall Dimensions 7000 x 4800 x 6800 mm
Model 3SJ-1500
Screw Diameter Φ65mm
Screw Ratio L/D30:1
Screw Speed 15-120r/min
Power Of Main Motor 22kwX2  30kwX1
Max Extrusion Output 170Kg/h
Range Of Die Φ250Φ300
Single-sided Thickness Of Film 0.01-0.10mm
Max.Folding Width of Film 1500mm
Electric Total Capacity 102Kw
Weight Of Machine 6200kg
Overall Dimensions 7000 x 4800 x 6800 mm

Model 3SJ-1000

Model 3SJ-1000
Screw Diameter Φ55mm
Screw Ratio L/D30:1
Screw Speed 15-120r/min
Power Of Main Motor 15kwX2 18.5kwX1
Max Extrusion Output 110Kg/h
Range Of Die Φ150Φ200
Single-sided Thickness Of Film 0.01-0.10mm
Max.Folding Width of Film 1000mm
Electric Total Capacity 76Kw
Weight Of Machine 6200kg
Overall Dimensions 7000 x 4800 x 6800 mm

Model 3SJ-1200

Model 3SJ-1500
Screw Diameter Φ65mm
Screw Ratio L/D30:1
Screw Speed 15-120r/min
Power Of Main Motor 22kwX2  30kwX1
Max Extrusion Output 170Kg/h
Range Of Die Φ250Φ300
Single-sided Thickness Of Film 0.01-0.10mm
Max.Folding Width of Film 1500mm
Electric Total Capacity 102Kw
Weight Of Machine 6200kg
Overall Dimensions 7000 x 4800 x 6800 mm

Model 3SJ-1500

Model 3SJ-1500
Screw Diameter Φ65mm
Screw Ratio L/D30:1
Screw Speed 15-120r/min
Power Of Main Motor 22kwX2  30kwX1
Max Extrusion Output 170Kg/h
Range Of Die Φ250Φ300
Single-sided Thickness Of Film 0.01-0.10mm
Max.Folding Width of Film 1500mm
Electric Total Capacity 102Kw
Weight Of Machine 6200kg
Overall Dimensions 7000 x 4800 x 6800 mm
